Navigation system II-D, overview: Sedan

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

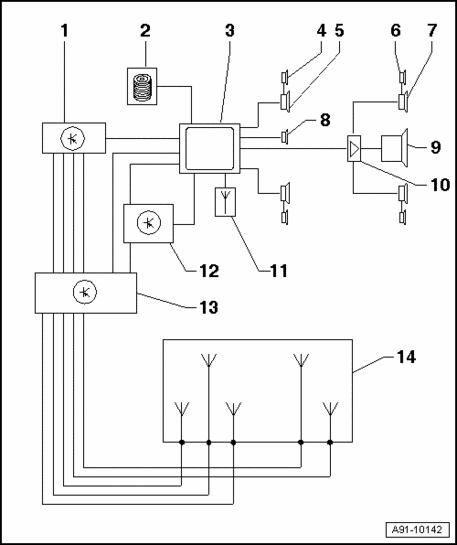

Fig 1: Navigation System II-D, Sedan Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Navigation/TV Tuner J415 behind luggage compartment left side trim

2 - CD Changer R41 in glove compartment

3 - Operating Electronics, Navigation Control Module J402 in top of center console

4 - Left Front Midrange Speaker R26 / Right Front Midrange Speaker R27 at top in front doors

5 - Left Front Bass Speaker R21 / Right Front Bass Speaker R23 at bottom in front doors

6 - Left Rear Midrange Speaker R34 / Right Rear Midrange Speaker R35 at top in rear doors

7 - Left Rear Bass Speaker R15 / Right Rear Bass Speaker R17 at bottom in rear doors

8 - Inside Loudspeaker R70 in front center instrument panel

9 - Bass Loudspeaker R100 in parcel shelf

10 - Amplifier R12 behind luggage compartment right side trim

11 - Navigation System Antenna R50 behind roof end trim

12 - Navigation Interface R94 behind luggage compartment left side trim

13 - Antenna Selection Control Module J515 behind roof end trim

14 - Rear window antennas AM/FM/TV
