Transmission layout
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

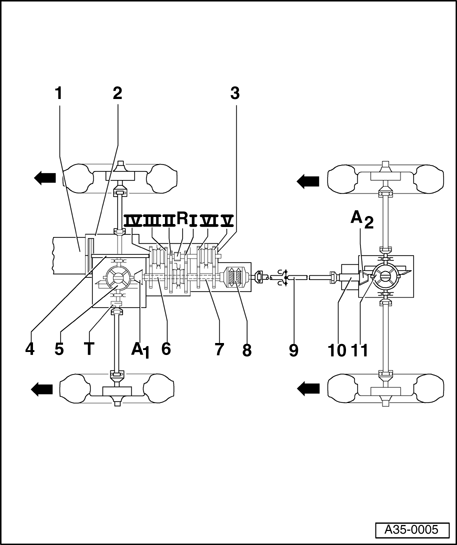

- Illustrated with the 6-speed manual transmission 01E all wheel drive
Designation
1 - Engine
2 - Clutch
3 - Manual transmission
4 - Input shaft
5 - Front differential
6 - Front drive pinion (output shaft)
7 - Hollow shaft
8 - Torsen differential
9 - Drive shaft
10 - Rear drive pinion
11 - Rear differential
Arrows in direction of travel
Ratio
| I | - | 1st gear |
| II | - | 2nd gear |
| III | - | 3rd gear |
| IV | - | 4th gear |
| V | - | 5th gear |
| VI | - | 6th gear |
| R | - | Reverse gear |
| A1 | - | Front final drive |
| A2 | - | Rear final drive |
| T | - | Speedometer drive |
Arrows in direction of travel
