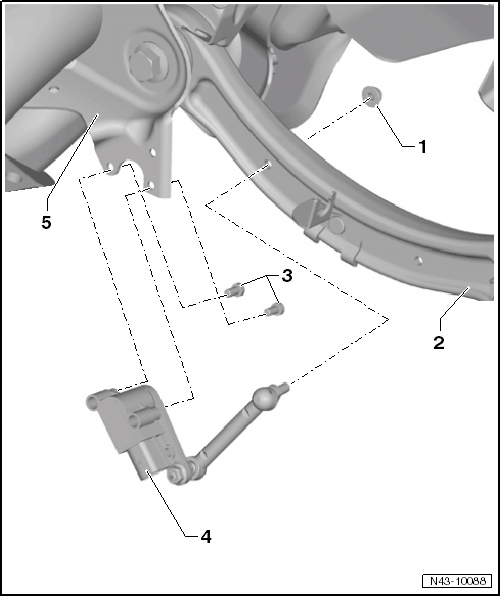

Overview - Left/Right Rear Level Control System Sensor -G76- / -G77-
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A replacement Left Rear Level Control System Sensor -G76- /Right Rear Level Control System Sensor -G77- comes complete with the coupling rod.
- Nut
- 8 Nm
- Upper Front Control Arm
- Bolt
- 5 Nm
- Left Rear Level Control System Sensor -G76- /Right Rear Level Control System Sensor -G77-
- Complete with components
- Removing and installing. Refer to LEFT/RIGHT REAR LEVEL CONTROL SYSTEM SENSOR -G76- / -G77-, REMOVING AND INSTALLING .
- If the Left Front Level Control System Sensor -G78- was removed and then installed, a basic setting of the level control system must be performed with the Vehicle Diagnostic Tester.
- After replacement, perform the basic setting for the headlamps using the Vehicle Diagnostic Tester.
Headlamps basic setting. Refer to Vehicle Diagnostic Tester in"Guided Fault Finding" function.
- Subframe
