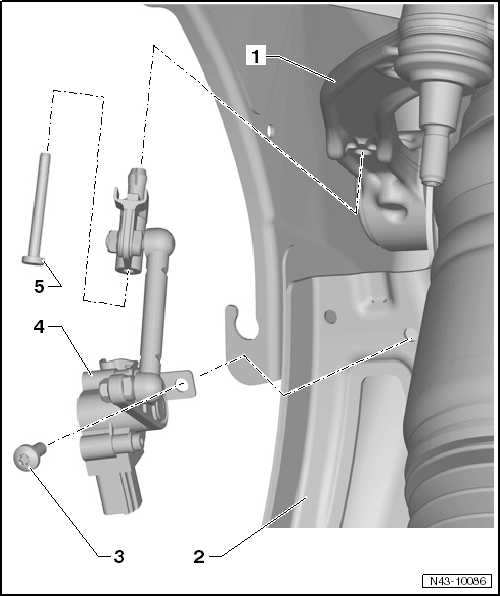

Overview - Left/Right Front Level Control System Sensor -G78- / -G289-
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A replacement Front Left Level Control System Sensor -G78- /Front Right Level Control System Sensor -G289- comes complete with the coupling rod and the upper and lower bracket.
- Upper Control Arm
- Wheel Housing
- Bolt
- 9 Nm
- Front Left Level Control System Sensor -G78- /Front Right Level Control System Sensor -G289-
- Complete with components
- Removing and installing. Refer to FRONT LEFT/RIGHT LEVEL CONTROL SYSTEM SENSOR -G78- / -G289-, REMOVING AND INSTALLING .
- If the Front Left Level Control System Sensor -G78- /Front Right Level Control System Sensor -G289- was removed and then installed, a basic setting of the level control system must be performed with the Vehicle Diagnostic Tester.
- After replacement, perform the basic setting for the headlamps using the Vehicle Diagnostic Tester.
- Assembly Pin
