Left/Right Rear Level Control System Sensor -G76- / -G77-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

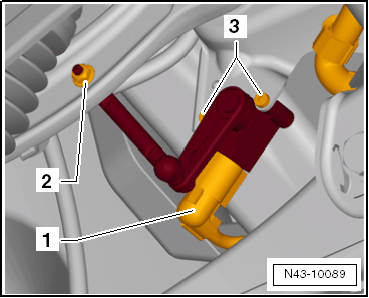

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .
-- Disconnect the connector -1- from the Left Rear Level Control System Sensor -G76- /Right Rear Level Control System Sensor -G77-.
-- Remove the nut -2-.
-- Remove the bolts -3- and remove the Left Front Level Control System Sensor -G78- /Right Front Level Control System Sensor -G289-.
