Front Left/Right Level Control System Sensor -G78- / -G289-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

-- Disconnect the connector -1- from the Front Left Level Control System Sensor -G78- /Front Right Level Control System Sensor -G289-.

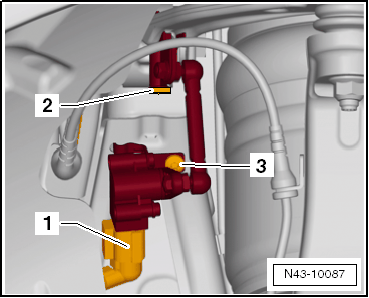

Fig 1: Front Level Control System Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the pin -2- down and unclip the coupling rod at the upper control arm.

-- Unscrew the bolt -3- and remove the Front Left Level Control System Sensor -G78- /Front Right Level Control System Sensor -G289-.
