Seat Adjustment Control Module, Removing And Installing: Removing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the seat. Refer to SEAT, REMOVING AND INSTALLING .

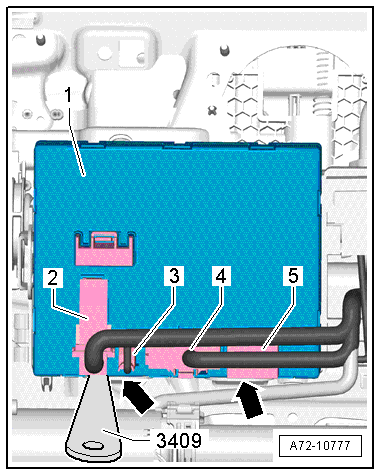

-- Disconnect the harness connectors -2 to 5- on the control module -1-.

Fig 1: Harness Connectors -2 To 5- On Control Module -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the tabs -arrows- using the : 3409 .

-- Carefully remove the control module -1- from the retainers -arrow-.

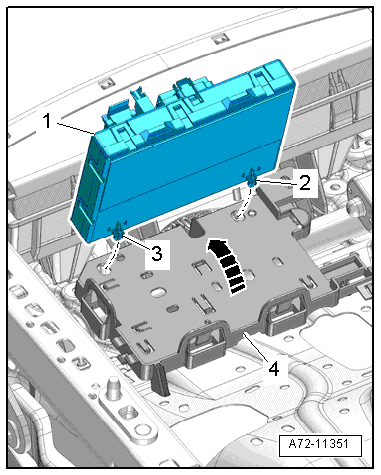

Fig 2: Carefully Remove Control Module From Retainers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage the hooks -2- and -3- on the bracket -4- and remove the control module.
