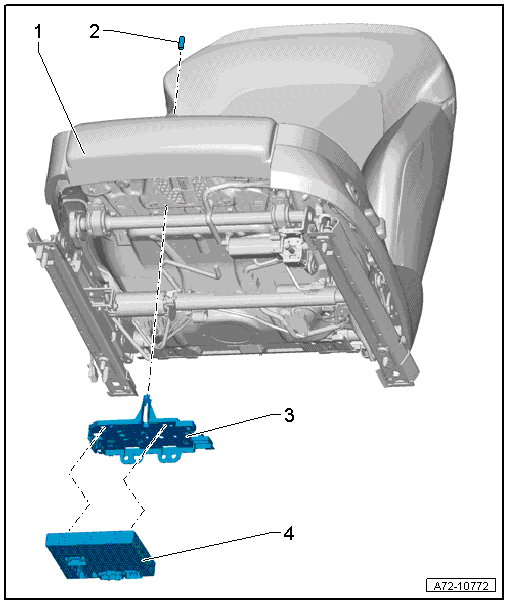

Seat Adjustment Control Module Assembly Overview
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Front Seat
- Pin
- for securing the bracket to the seat pan
- Bracket
- Removing and installing. Refer to CONTROL MODULE BRACKET, REMOVING AND INSTALLING .
- Engaged and clipped in the seat pan
- Seat Adjustment Control Module
- Driver side: Driver Multicontour Seat Control Module -J873-
- Front passenger side: Passenger Side Rear Multicontour Seat Control Module -J874-
- Vehicles with temperature-controlled seat on the driver side: Integrated Left Front Seat Ventilation Control Module -J800-
- Vehicles equipped with temperature-controlled seat on the front passenger side: Integrated Right Front Seat Ventilation Control Module -J799-
- clipped with the bracket
- Removing and installing. Refer to SEAT ADJUSTMENT CONTROL MODULE, REMOVING AND INSTALLING .
