Control Module Bracket, Removing And Installing: Removing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the seat adjustment control module. Refer to SEAT ADJUSTMENT CONTROL MODULE, REMOVING AND INSTALLING .

-- Press the pin -2- in the direction of the cushion out of the clip -arrow A- of the bracket -1-.

Fig 1: Bracket -1- & Pin -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the pin that was pressed out from the seat pan.

-- Remove the support foot from the bracket -2- of the seat frame.

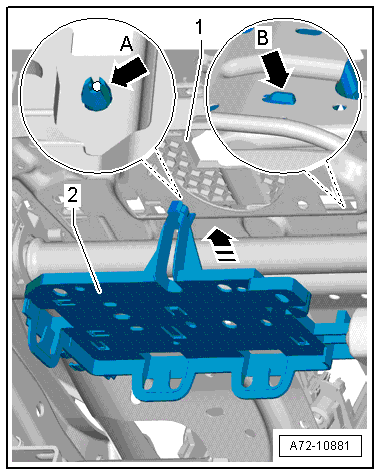

Fig 2: Bracket -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- For this purpose, unclip the clip -arrow A- from the seat frame -1-.

-- Unclip the retaining tabs -arrow B- (quantity: 2).

-- Carefully remove the bracket in the direction of the -arrow- from the seat pan.

-- Remove the bracket from the seat pan.
