Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the steering column. Refer to STEERING COLUMN, REMOVING AND INSTALLING .

-- Remove the bolt -arrow-.

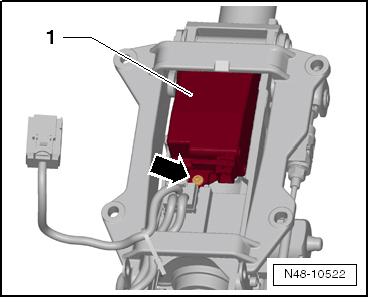

Fig 1: Identifying Electronic Steering Column Lock Control Module -J764- -1- And Bolt -Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slightly lift the Electronic Steering Column Lock Control Module -J764- -1- and remove it from the steering column.

WARNING:

After removal of the control module, make sure no dirt or foreign objects enter the steering column.
