Power Steering, Removing And Installing: Removing

Vehicles with an Air Spring Shock Absorber

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

Continuation for All Vehicles

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheels.

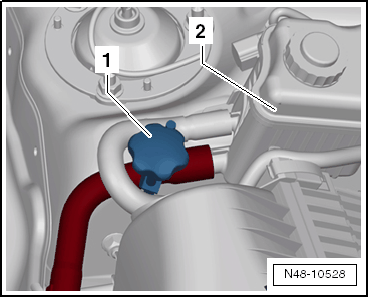

-- Clamp off the suction hose at the power steering fluid reservoir -2-.

Fig 1: Clamp Off The Suction Hose At The Power Steering Fluid Reservoir -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Hose Clamps - Up To 25mm: 3094

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

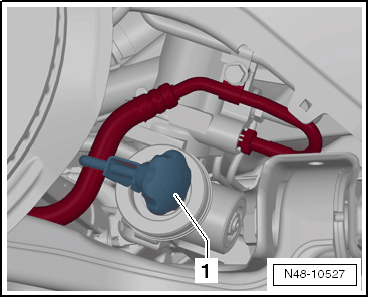

-- Clamp off the return line.

Fig 2: Clamp Off The Return Line

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Hose Clamps - Up To 25mm: 3094

-- Loosen nut of track rod ball joint, but do not unscrew yet.

Fig 3: Loosen Nut Of Track Rod Ball Joint

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

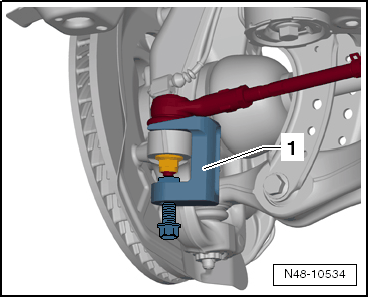

-- Remove the tie rod end from the wheel bearing housing and remove the nut.

1. Puller - Ball Joint: T10187

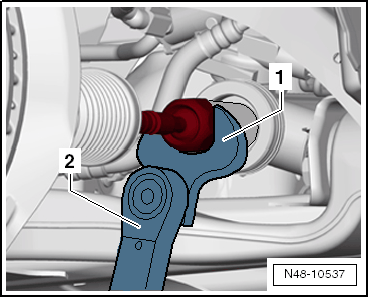

-- Remove the left tie rod from the steering gear.

Fig 4: Identifying V.A.G 1923 -1- And V.A.G 1332 -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Torque Wrench Insert - Open Jaw: VAG1923
2. Torque Wrench 1332 40-200Nm: VAG1332

-- If equipped, remove screws -arrows-.

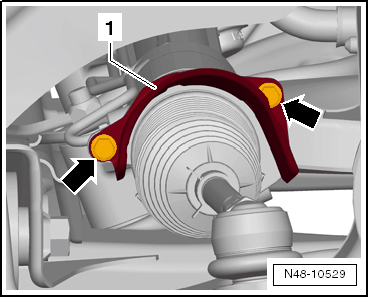

Fig 5: Identifying Heat Shield -1- And Universal Joint -2-, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove heat shield -1- on steering gear -2-.

-- Turn the steering gear to the right to the stop.

-- Remove the bolt -arrow- of the universal joint -1-.

Fig 6: Identifying Bolt -Arrow- Of Universal Joint -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the universal joint -1- from the power steering gear -2-.

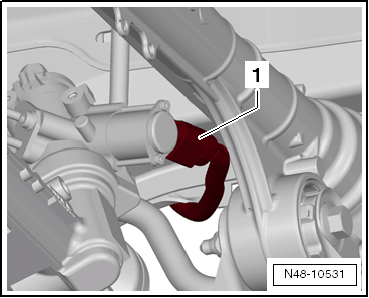

-- Release and disconnect the harness connector -1- from the Servotronic Solenoid Valve -N119-.

Fig 7: Disconnect The Harness Connector -1- From The Servotronic Solenoid Valve -N119-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

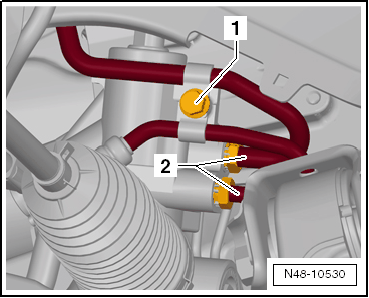

-- Remove the brackets for the hydraulic lines -1-.

Fig 8: Identifying Pressure Line And Return Line -2- To Steering Gear

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove pressure line and return line -2- from steering gear.

-- Unscrew the threaded connection -arrows- from the heat shield -1-.

Fig 9: Identifying Threaded Connection -Arrows- From Heat Shield -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove heat shield.

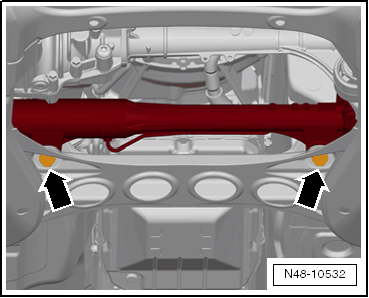

-- Unscrew the threaded connection -arrows- from the steering gear.

Fig 10: Identifying Threaded Connections -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

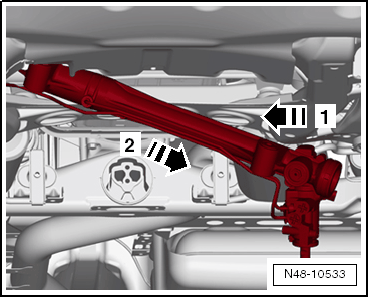

-- Slide steering gear to right side of vehicle direction of -arrow 1-.

-- Move the steering gear downward on the left side.

-- Then remove the steering gear downward toward the left side of vehicle direction of -arrow 2-.

Fig 11: Identifying Removal Of Steering Gear

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
