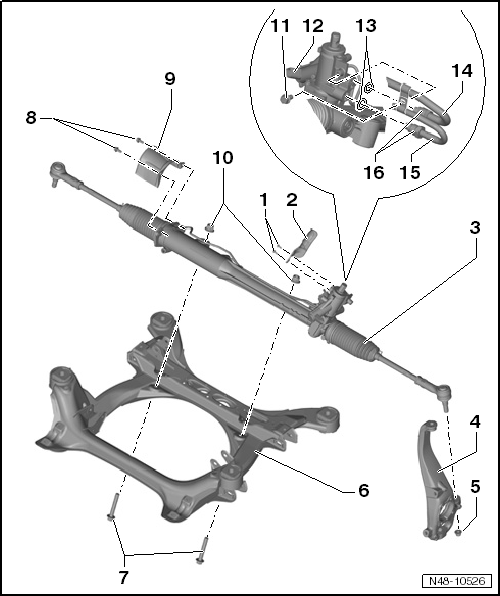

Overview - Power Steering
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Hex Bolt
- 9 Nm
- Heat Shield
- Power Steering Gear
- Removing and installing. Refer to POWER STEERING, REMOVING AND INSTALLING .
- Wheel Bearing Housing
- Tapered holes must be free of oil and grease
- If necessary, clean with a dry rag, do not use cleaning solvent
- There are different versions.
- For the allocation. Refer to the Parts Information.
- Self-Locking Nut
- 90 Nm
- Always replace if removed
- Subframe
- Hex Bolt
- Always replace if removed
- Hex Bolt
- 9 Nm
- Heat Shield
- Nut
- 90 Nm + 90°
- Always replace if removed
- Hex Bolt
- 9 Nm
- Servotronic Solenoid Valve -N119-
- Seal
- Replace
- Pressure Line
- Return Line
- Bolt
- 32 Nm
