Overview - Power Steering Gear

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

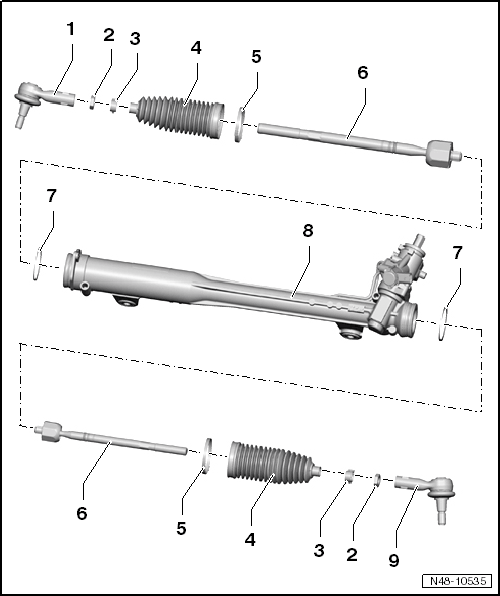

Fig 1: Identifying Power Steering Gear Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Tie Rod End
- Marked with an "R". Refer to Installing - Make sure the correct tie rod end is installed on each side
- Check dust caps for damage and correct seating
- Tapered plug must be free of oil and grease
- If necessary, clean with a dry rag, do not use cleaning solvent
- Removing and installing. Refer to TIE ROD END, REMOVING AND INSTALLING .
Hex Nut
- 70 Nm
Spring Clamp
Boot
- Check for damage
- Must not be twisted when toe is being adjusted
Clamp
- Always replace if removed
Tie Rod
- 100 Nm
- Removing and installing. Refer to TIE ROD, REMOVING AND INSTALLING .
Seal
- Replace when removing the boot. Refer to BOOT, REMOVING AND INSTALLING
- For the allocation. Refer to the Parts Information.
Power Steering Gear
- Removing and installing. Refer to POWER STEERING, REMOVING AND INSTALLING .
Left Tie Rod End
- Marked with an "L". Refer to Installing - Make sure the correct tie rod end is installed on each side .
- Check dust caps for damage and correct seating
- Tapered plug must be free of oil and grease
- If necessary, clean with a dry rag, do not use cleaning solvent
- Removing and installing. Refer to TIE ROD END, REMOVING AND INSTALLING .
