Engine, Supporting In Installed Position
Special tools and workshop equipment required
- Engine Support Bridge :10-222A with Engine Support Bridge - Engine Support 29 :10-222A/29
- Quantity: 2 Engine Support - Bracket w/Spindle and Hook : 10-222A/10
- Engine Support Bridge - Engine Support 28 :10-222A/28
- Quantity: 2 Square Pipes : T40091/1
- Rail with Holes :T40091/2
- Quantity: 2 Moveable Joints : T40091/3
- Mount :T40093/5
- Quantity: 2 Moveable Joints : T40093/4

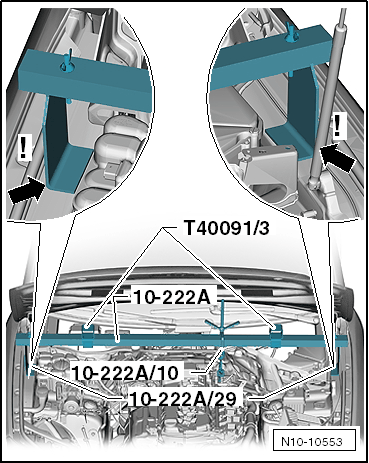

-- Push the :T40091/3 and :10-222A/10 onto the square pipe of the :10-222A .
-- Mount the :10-222A/29 onto the square pipe.
-- >>Flip up<< the right and left plenum chamber cover.
-- Position the engine support bridge as illustrated.
Do not mount the engine support bridge on the metal tabs -arrow-.

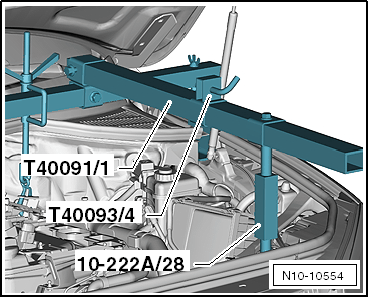

-- Push the :T40093/4 and :10-222A/28 onto the :T40091/1 .
-- Place the :10-222A/28 on the longitudinal member and slide the :T40091/1 into the :T40091/3 .
-- Repeat the procedure on the other side of the vehicle.

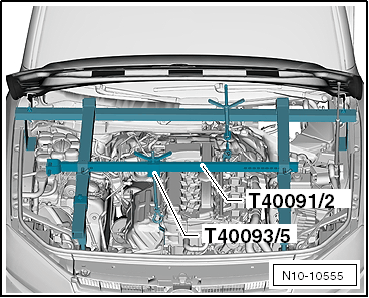

-- Slide the :T40091/2 through the :T40093/4 on one side.
-- Slide the :T40093/5 onto the :T40091/2 and then the rail with holes into the moveable joint on the other side.
-- Install the locking pin and secure it with a splint.
-- Tighten all threaded connections on the engine support bridge hand-tight.
-- Attach the hooks on the spindle to the lifting eyes on the engine and hold the engine in its installed position.
