Engine Compartment Cover, Removing And Installing: Installing

WARNING: This page is about a different car, the 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Make sure the rubber buffers fit correctly into the mounts when installing.

Fig 1: Identifying Correct Installation Of Rubber Insulators

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the parts 2 and 3 onto the mounting points -arrows-.

-- Install the center part -1-.

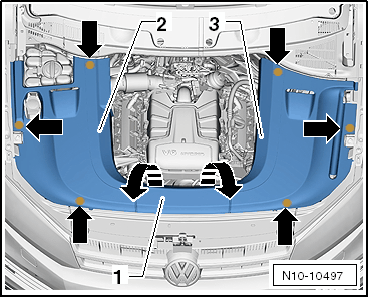

Fig 2: Identifying Engine Compartment Cover
