Vehicle, Lifting: Notes
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Using the hoist incorrectly can damage the vehicle.
- Do not exceed the permitted load rating of the hoist.
- Only lift the vehicle at the mounting points shown.
- Position the mounting plate so that it is aligned centrally under the mounting points.
- Maintain distance between the low-lying vehicle components and the hoist.
Applies to vehicles with air suspension ("adaptive air suspension"): activate vehicle lift mode before lifting. Refer to VEHICLE LIFT MODE, ACTIVATING
Procedure:

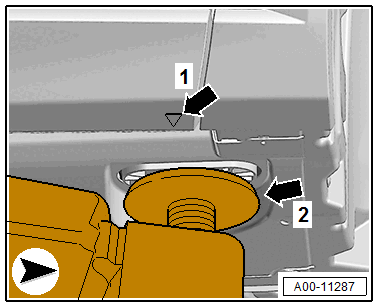

-- Position the hoist mounting plate on the mount -arrow 2- on the underbody.
