Vehicle Diagnostic Tester, Connecting
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools And Workshop Equipment Required
- Vehicle Diagnostic Tester
- Vehicle Communication Interface (VCI): VAS6154
- Or: Diagnosis Interface: VAS5055
Procedure:

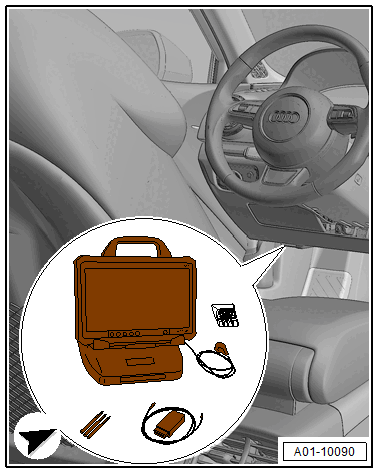

-- Attach the connector from the : VAS6154 to the diagnostic connection in the vehicle.
-- Turn on the Vehicle Diagnostic Tester.
-- Switch the ignition on.
-- Follow the screen menu to start the desired function.
