Charging Socket(S), Checking For Contamination And Damage
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
The charging socket is located on the left front side of the vehicle near the wheel housing. There may also be a second charging socket on the right front side of the vehicle.
Requirements:
- Ignition must be switched off.
Procedure:
-- Open the charging unit cover.
-- Check the light on the charging socket.

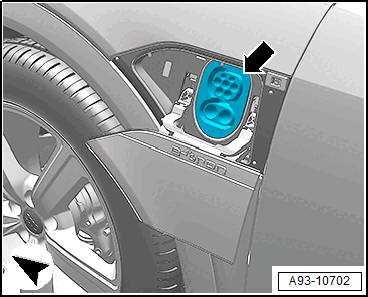

-- Check socket(s) -arrow- for:
- Debris/traces of powder
- Damage/deformation
- Secure fit on the body
-- Clean the charging socket if necessary.
-- Replace any damaged components.
