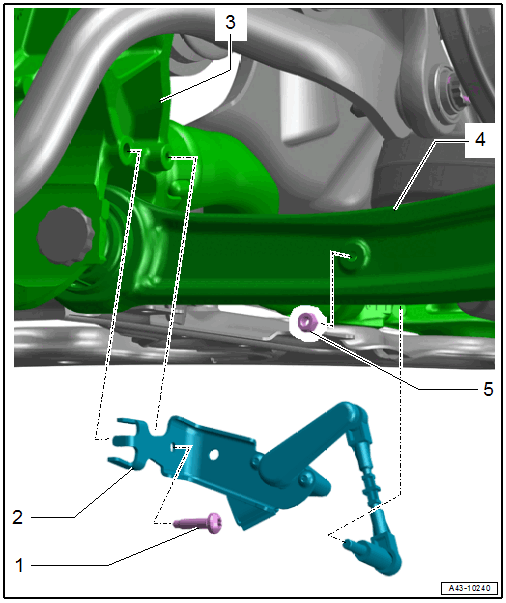

Overview - Front Level Control System Sensor
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 9 Nm
- Front Level Control System Sensor
- Left Front Level Control System Sensor -G78-
- Right Front Level Control System Sensor -G289-
- With coupling rod and retaining plate
- Removing and installing. Refer to LEFT/RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR -G78- / -G289-, REMOVING AND INSTALLING .
- Installation position: sensor coupling rod points outward
- Subframe
- Control Arm
- Nut
- 9 Nm
- Replace after removing.
- Self-locking
