Engine Control Module -J623-, REMOVING AND INSTALLING, WITHOUT PROTECTIVE HOUSING: Installing

WARNING: This page is about a different car, the 2016 Volkswagen e-Golf and 2015 Volkswagen e-Golf. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal. Note the following:

NOTE:

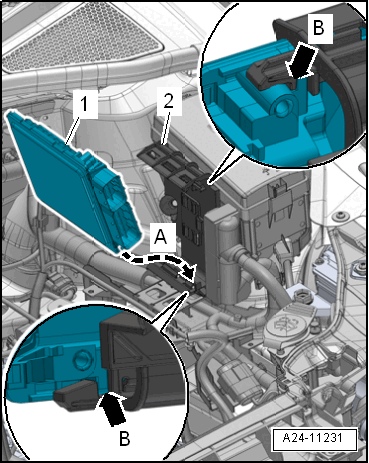

The bars on the engine control module -1- must engage into the upper and lower openings on the bracket -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the Engine Control Module -J623- -1- into the bracket -2- with the lower edge first -A- and lock at the upper edge.

-- Connect the battery. Refer to Battery, Disconnecting and Connecting .

After installing a new engine control module, the following step must be performed.

-- Switch on the ignition and select the following menu items on the Vehicle Diagnostic Tester:

01 - Motor electronics
Guided Functions
01 - Replacing the Engine Control Module
