Engine Control Module -J623- BRACKET, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2016 Volkswagen e-Golf and 2015 Volkswagen e-Golf. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Engine/Motor Control Module -J623-. Refer to Engine/Motor Control Module -J623-, REMOVING AND INSTALLING .

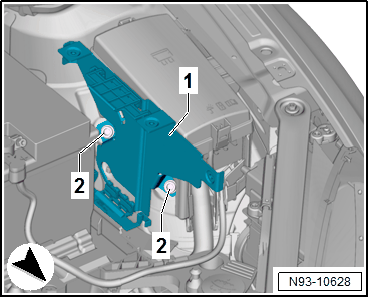

-- Remove the nuts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket for the Engine Control Module -J623- -1- upward and out of the vehicle.
