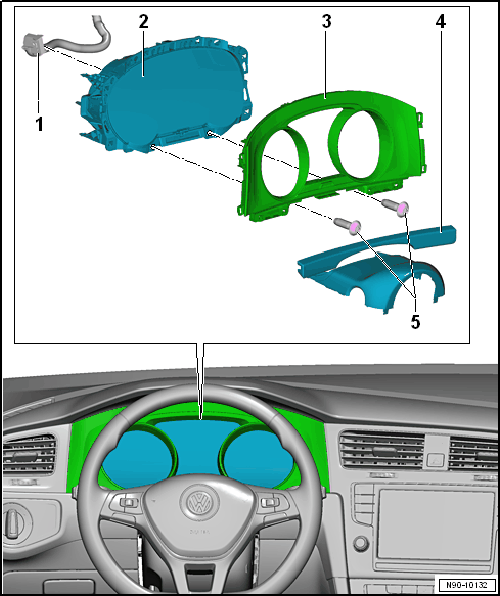

Overview - Instrument Cluster
WARNING: This page is about a different car, the 2016 Volkswagen e-Golf and 2015 Volkswagen e-Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- For the instrument cluster
- Instrument Cluster -KX2-
- With Instrument Cluster Control Module -J285-
- If a LED indicator lamp or instrument cluster illumination is faulty, the instrument cluster must be replaced
- Removing and installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
- Instrument Cluster Trim
- Removing and Installing. Refer to Instrument Panel
- Upper Steering Column Trim
- Assembly overview. Refer to OVERVIEW - STEERING COLUMN TRIM PANEL .
- Bolt
- 2.5 Nm
- Quantity: 2
