Install the Guide

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

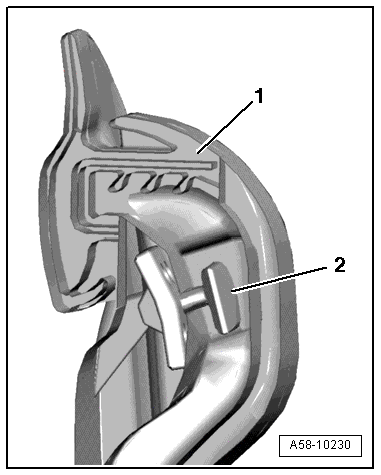

Fig 1: Installing Guide
GWWA58-10230Courtesy of AUDI OF AMERICA, LLC

-- Push the guide -1- and the clip -2- onto the top of the B-pillar -arrow- as illustrated above.
