Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

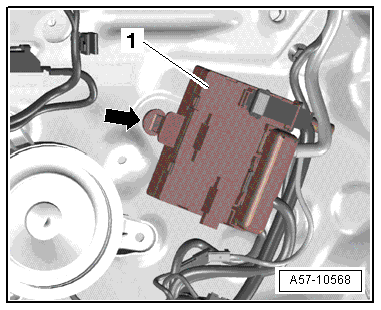

Fig 1: Identifying Driver Door Control Module -J386- And Front Passenger Door Control Module -J387-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the door trim panel. Refer to Front Door Trim Panel, Removing and Installing .

-- Push the release downward and disconnect the connectors.

-- Press the tab in direction of -arrow- and disengage the door control module -1- from the door panel.

Installing

-- Installation in reverse order of removal making sure the retainer locks into the inner door panel.
