Comfort System Central Control Module -J393-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment rear trim panel. Refer to OVERVIEW - LUGGAGE COMPARTMENT TRIM PANEL COMPONENT LOCATION .

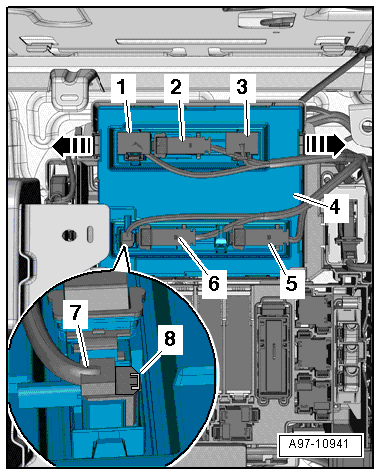

-- Release the mounting tabs in direction of -arrows- and remove the Comfort System Central Control Module -J393- -item 4- from the frame.
-- Disconnect the electrical connectors -1- and -3-.
-- Pull the retainer -8- carefully and disconnect the antenna connector -7-.
-- Disconnect the connectors -2, 5 and 6-.
-- To disconnect the connector, press the retainer -1-, turn the bracket in direction of -arrow- and disconnect the connector.
