Left Front Level Control System Sensor -G78- /Right Front Level Control Sensor -G289-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
-- Place the vehicle on a hoist. Refer to RAISING AND LOWERING WITH OPEN AND CLOSED AIR SUSPENSION SYSTEM .

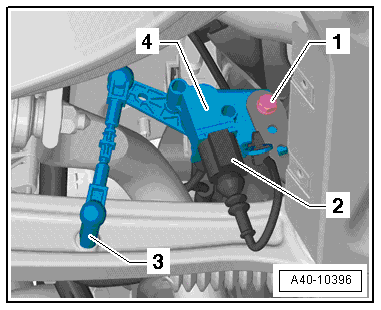

-- Disconnect the connector -2-.
-- Remove the nut (not illustrated) from the mount -3-.
-- Remove the bolts -1-.
-- Remove the level control system sensor -4-.
