Windshield Washer Pump, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the right front wheel housing liner rear section. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

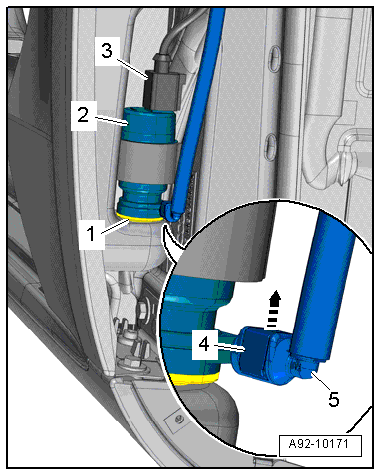

-- Disconnect the connector -3-.
-- Place a drip tray under the windshield washer fluid reservoir.
-- Open the clip -4- -arrow- and disconnect the windshield washer fluid hose -5- from the windshield washer pump.
-- Remove the Windshield Washer Pump -V5- -2- upward out of the washer fluid reservoir.
