Windshield Washer Fluid Reservoir, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal. Note the following:

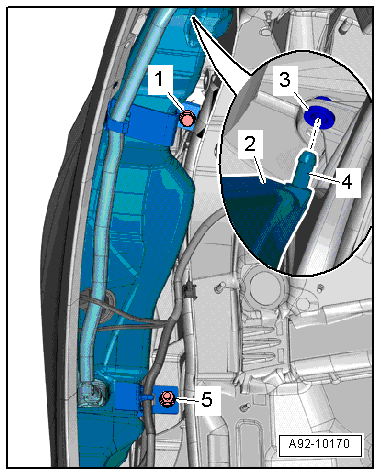

-- Make sure the securing tab -4- fits all the way into the grommet -3- on the body when installing the windshield washer fluid reservoir -2-.
-- Tighten the bolt -1- and the nut -5-.
