Camshaft Position Sensor, Removing And Installing: Removing

WARNING: This page is about a different car, the 2016 Audi A8 Quattro and 2015 Audi A8 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Install all cable ties and heat shield boots back in the same location when installing.

Camshaft Position Sensor -G40- /Camshaft Position Sensor 2 -G163- :

Fig 1: Identifying Bracket Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Remove all of the connectors from the bracket.

-- Remove the nuts -arrows- and remove the connector bracket from the plenum chamber bulkhead.

-- Remove the affected secondary air injection hose -2- by pressing the release buttons.

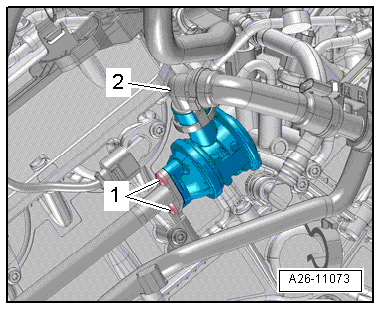

Fig 2: Identifying Secondary Air Injection (Air) Hose

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -1-.

-- Disconnect the connector -1-.

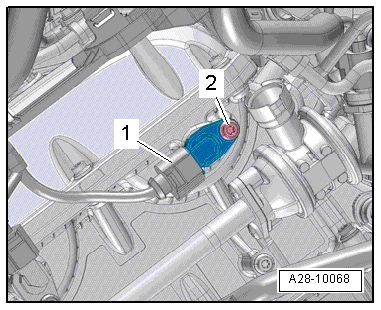

Fig 3: Identifying Camshaft Position Sensor, Connector And Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and the affected camshaft position sensor.

Camshaft Position Sensor 3 -G300- /Camshaft Position Sensor 4 -G301- :

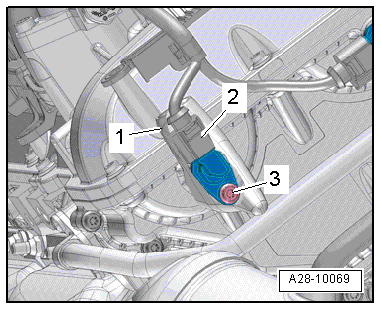

Fig 4: Identifying Camshaft Position Sensor, Connector And Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the plenum chamber bulkhead. Refer to BULKHEAD .

-- Remove the heat shield boot -1- by cutting the cable ties.

-- Disconnect the connector -2-.

-- Remove the bolt -3- and the affected camshaft position sensor.
