Engine, Supporting In Installation Position: Notes

WARNING: This page is about a different car, the 2016 Audi A8 Quattro and 2015 Audi A8 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Support Bridge:10-222A
Engine/Gearbox Support Shackle (2 pc.):10-222A/12
Engine Sling - Engine Bracket:2024A/1
Engine Support - Basic Set:T40091
Engine Support - Supplement Kit:T40093A with Engine Support Brackets:T40093/7 and :T40093/8

Procedure

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Position the :10-222A on the left and right suspension strut domes as illustrated.

-- Mount the additional tools as shown.

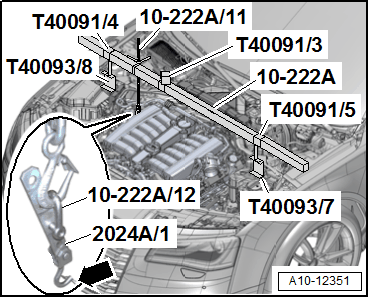

Fig 1: Identifying Engine Support Bridge

Courtesy of AUDI OF AMERICA, LLC

-- Attach the spindle to the engine lifting eyes and pre-tension the engine slightly.
