Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

-- On a USA vehicle, remove the driver side knee airbag. Refer to Knee Airbag with Igniter N295/N296, Removing and Installing .

-- Disengage the 7-chamber relay/fuse panel from the mount with the wires still connected. Refer o RELAY AND FUSE PANELS BEHIND INSTRUMENT PANEL ON DRIVER SIDE, REMOVING AND INSTALLING .

-- Release the spring -4- and remove the Vehicle Electrical System Control Module -J519- -3-.

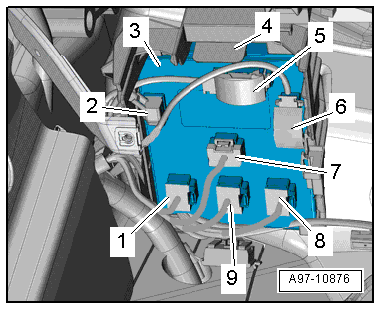

Fig 1: Vehicle Electrical System Control Module Component Location Overview

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1, 2, 7, 8 and 9-.

-- Disconnect the connectors -5- and -6-.

-- To disconnect the connector, press the catch -1-, rotate the retaining bracket in the direction of the -arrow- and remove the connector.

Fig 2: Catch & Retainer

Courtesy of AUDI OF AMERICA, LLC
