Outside Air Temperature Sensor, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the right horn. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .

-- Squeeze the clips carefully -arrow- and remove the Outside Air Temperature Sensor -G17- -2-.

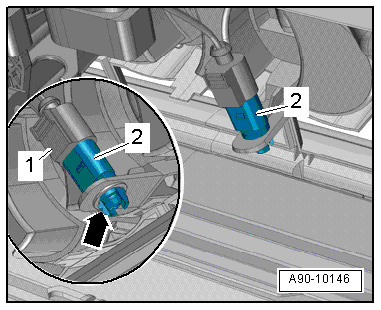

Fig 1: Identifying Outside Air Temperature Sensor
GWWA90-10146Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.
