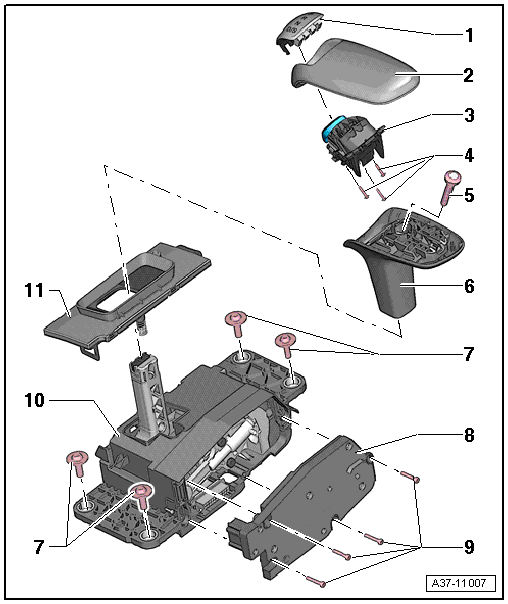

Overview - Selector Mechanism
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
Before disassembling the selector mechanism, perform check. Refer to GEARSHIFT MECHANISM, CHECKING .
CAUTION:
Danger of causing damage to electric components in the selector mechanism by the electrostatic discharge.
- Do not touch the connectors.
- Disassemble the removed selector mechanism on ESD Work Surface:VAS 6613 .
- Pay attention to the instructions for ESD Work Surface:VAS 6613 . Refer to [For engine(s) CTUB, CEJA, CGTA, CDRA, CEUA, CPNA] Wiring .
- Cover
- Clipped inside the selector lever handle upper section
- Removing and installing. Refer to Selector Lever Release Button -E681- AND Selector Lever Transmission Range Position Display Unit -Y26-, REMOVING AND INSTALLING
- Selector Lever Handle Upper Section
- Removing and installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING
- Selector Lever Release Button -E681- and Selector Lever Transmission Range Position Display Unit -Y26-
- Can be replaced only as a unit
- Removing and installing. Refer to Selector Lever Release Button -E681- AND Selector Lever Transmission Range Position Display Unit -Y26-, REMOVING AND INSTALLING .
- The Selector Lever Release Button -E681- unlocks the selector lever. The lever is unlocked electrically.
- The Selector Lever Transmission Range Position Display Unit -Y26- displays the current drive position.
- Bolt
- 0.25 Nm
- Quantity: 3
- Bolt
- 7 Nm
- Special bolts, without a normal thread, may be replaced only with Original bolts.
- Selector Lever Handle Lower Section
- Removing and installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING
- Bolt
- 8 Nm
- Special bolts, without a normal thread, may be replaced only with Original bolts.
- Quantity: 4
- Selector Lever Sensor System Control Module -J587- with Selector Lever Position Sensor -G727-
- Use the ESD Work Surface:VAS6613 for the removal
- Removing and installing. Refer to Selector Lever Sensor System Control Module -J587- AND Selector Lever Position Sensor -G727-, REMOVING AND INSTALLING
- Bolt
- Tightening specification and sequence. Refer to Fig 2
- Quantity: 4
- Selector Mechanism Function Unit
- Can only be replaced as a unit
- With Selector Lever -E313-, Selector Lever Solenoid 1 -N496-, Selector Lever Solenoid 2 -N497-, Selector Lever Solenoid 3 -N498-, Selector Lever Solenoid 4 -N499-, Selector Lever Solenoid 5 -N500-
- Removing and installing. SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Cover Strip

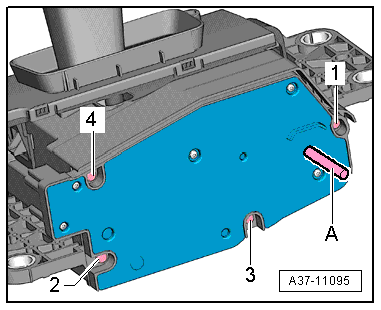

Selector Lever Sensor System Control ModuleJ587 Tightening Specification and Sequence
-- Tighten the bolts to 1.1 Nm in the following sequence: -1 to 4-.
NOTE:
Always follow the procedure for installation exactly. Refer to Selector Lever Sensor System Control Module -J587- AND Selector Lever Position Sensor -G727-, REMOVING AND INSTALLING .
