ATF Lines, Removing And Installing: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Used Oil Collection and Extraction Unit:SMN372500
- Engine Bung Set:VAS 6122
- Hose diameter approximately 18 mm
- Compressed air gun, commercially available
- Protective eyewear
NOTE:
Refer to GENERAL REPAIR INFORMATION .
Refer to CLEAN WORKING CONDITIONS .
-- Place the Used Oil Collection and Extraction Unit:SMN372500 under the transmission.
Vehicles through MY 2014

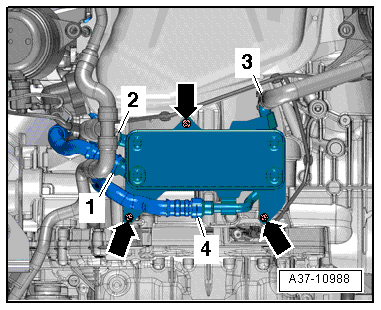

-- Remove the clamps -1 and 4- and disconnect the ATF lines.

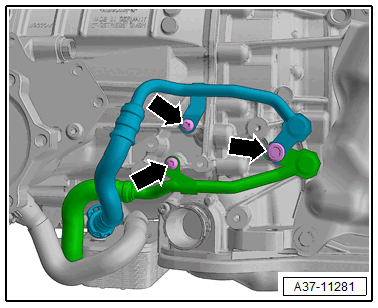

-- Remove the bolts -arrows- and the ATF lines.
-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS6122 .
