ATF Lines, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying ATF Cooler & Bolts

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. At the same time pay attention to the following:

CAUTION:

Danger of causing damage to the transmission.

Remove all the plugs on the ATF lines and on the transmission that were installed during removal.
The ATF cooling function will not work and the transmission will be damaged if the plugs are forgotten.

-- Install the ATF lines all the way and then the clips -1 and 4-.

-- Re-tighten the bolts -arrows- to the tightening specification.

Courtesy of AUDI OF AMERICA, LLC

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. At the same time pay attention to the following:

CAUTION:

Danger of causing damage to the transmission.

Remove all the plugs on the ATF lines and on the transmission that were installed during removal.
The ATF cooling function will not work and the transmission will be damaged if the plugs are forgotten.

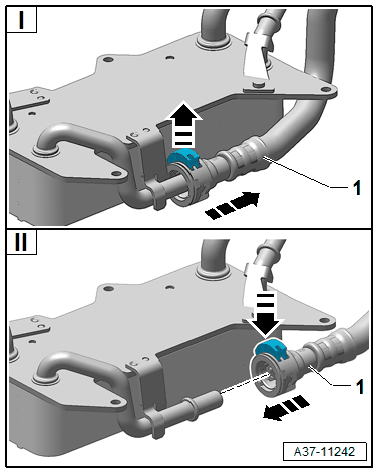

-- Lightly coat the ATF supports with ATF.

-- Insert the ATF line -1- all the way on the ATF supports until the catches are released.

-- In this position push down the quick-release coupling clip.

Vehicles with Metal ATF Lines

Courtesy of AUDI OF AMERICA, LLC

-- Re-tighten the bolts -arrows- to the tightening specification.

Vehicles with Plastic ATF Lines

Courtesy of AUDI OF AMERICA, LLC

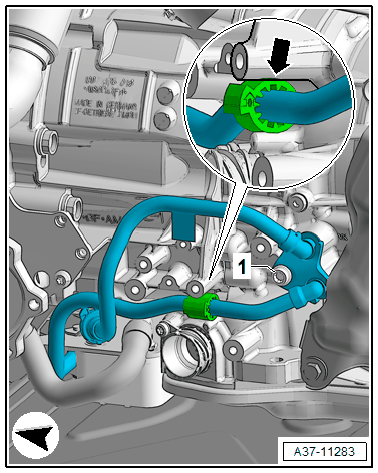

-- Align the ATF lines and position the pronged ring -arrow- in the transmission depression.

-- Re-tighten the bolt -1- to the tightening specification.

All Vehicles
