Steering Column, Handling And Transporting
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- The correct handling of the steering column must always be observed.
- Incorrect handling of steering column may cause damage to steering column and therefore lead to a safety risk.

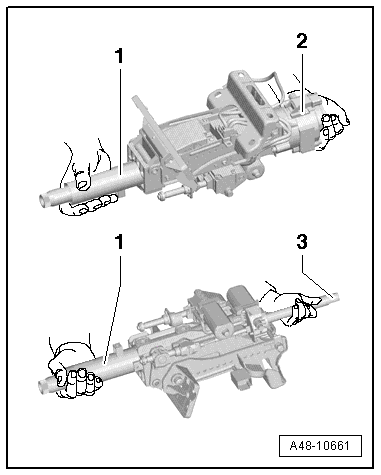

Correct Handling and Transport of Steering Column
- Transport steering column with two hands
- Hold the steering column at the top of the steering rod tube -1-, or depending on the version near the dynamic steering adjuster -2-, or at the bottom of the steering rod tube.

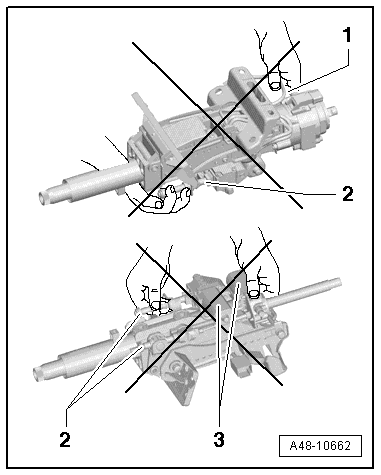

Incorrect Handling of Steering Column
Transporting at the following components leads to pre-damage to steering column:
- Connector, wiring harness
- Spindles for the electric steering column adjustment
- Motors for the electric steering column adjustment
