Tightening Specifications
The tightening specifications only apply to lightly greased, oiled, phosphated or blackened nuts and bolts.
Additional lubricant such as engine oil or transmission fluid may be used, but do not use graphite lubricant.
Do not use any parts that have had the lubrication removed.
Tightening specification tolerance: ±15%.
| Component | Nm | ||
|---|---|---|---|
| Bolts and nuts | M6 | 9 | |
| M7 | 15 | ||
| M8 | 20 | ||
| M10 | 40 | ||
| M12 | 65 | ||
- Refer to OVERVIEW - SUBFRAME MOUNT .
- Engine to transmission. Refer to [For transmission(s) 0BK] Transmission Tightening Specifications .
Procedure
Replace the bolts that were tightened with an additional turn.
Replace the self-locking nuts and bolts, as well as the seals, gaskets and O-rings.
The hose connections as well as air duct pipes and hoses must be free of oil and grease before installing.
Secure all hose connections with hose clamps that match the ones used in series production. Refer to the Parts Information.
During installation, install all cable ties back at the same position.
-- Always clean the threaded holes for the engine/transmission threaded connection in the cylinder block using a thread tap before installing the transmission.
- Before installing a new engine, check if the alignment pin -Item 6- OVERVIEW - CYLINDER BLOCK, TRANSMISSION SIDE is in the crankshaft, install it if necessary. Allocation. Refer to the Parts Information.
Vehicles through MY 2013:

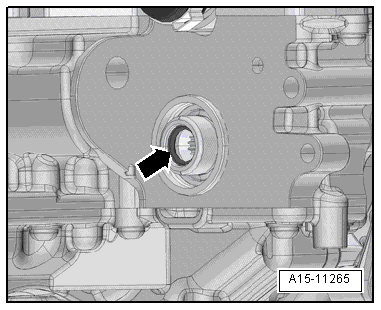

-- Before installing a replacement engine, make sure that the semi-round ring -arrow- is inserted in the power steering pump drive axle.
Continuation for All Vehicles:
-- Install the upper left coolant pipe if removed. Refer to COOLANT PIPES, REMOVING AND INSTALLING .
-- Install the engine support and engine mount. Refer to OVERVIEW - SUBFRAME MOUNT .
-- Install the engine on the transmission. Refer to [For transmission(s) 0BK] Transmission, Installing .
Further installation is the reverse order of removal.
-- Tighten the drive axles on the transmission flange shafts. Refer to DRIVE AXLE .
-- Install the ATF cooler. Refer to [For transmission(s) 0BK] ATF Cooler, Removing and Installing .
-- Install the right coolant pipe on the transmission. Refer to COOLANT PIPES, REMOVING AND INSTALLING .
-- Install the catalytic converter. Refer to OVERVIEW - MUFFLER .
-- Install the ATF lines. Refer to [For transmission(s) 0BK] ATF Lines, Removing and Installing .
Vehicles through MY 2013:
-- Install the power steering hydraulic line. Refer to POWER STEERING HYDRAULICS .
Continuation for All Vehicles:
-- Install the transmission mount and the transmission support. Refer to TRANSMISSION SUPPORT WITH REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING .
-- Lift the engine/transmission assembly with the :VAS6131B .
-- Align the subframe and tunnel crossmember using the marks made on the longitudinal members during removal.
-- Tighten the tunnel crossmember bolts. Refer to [For transmission(s) 0BK] Assembly Mounts Overview .
-- Tighten the subframe bolts only to the tightening specifications and with no additional turns (tighten the bolts only after axle alignment). Refer to SUBFRAME .
Risk of accident due to loose threaded connections.
- If the subframe bolts are not tightened to final torque, the vehicle must not be driven.
Further installation is performed in reverse order of removal, while noting the following:
-- Install the emergency release cable. Refer to SELECTOR MECHANISM .
-- Install the driveshaft. Refer to DRIVESHAFT, REMOVING FROM REAR FINAL DRIVE AND INSTALLING .
-- Install the front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .
-- Attach the steering intermediate shaft to the steering gear. Refer to Steering Intermediate Shaft, Removing and Installing .
-- Install the upper control arm and suspension strut. Refer to SUSPENSION STRUT AND UPPER CONTROL ARM .
-- Install the subframe crossbrace and stabilizer bar. Refer to SUBFRAME .
-- Install the braces on the transmission mounts. Refer to OVERVIEW - SUBFRAME MOUNT .
-- Install the brake caliper. Refer to FRONT BRAKE CALIPER .
-- Install the exhaust pipe for the parking heater. Refer to appropriate service information. .
-- Install the refrigerant lines. Refer to OVERVIEW - REFRIGERANT LINES .
-- Install the right engine oil cooler. Refer to RIGHT ENGINE OIL COOLER, REMOVING AND INSTALLING .
-- Install the lower longitudinal member. Refer to LOCK CARRIER .
-- Install the air filter housing. Refer to OVERVIEW - AIR FILTER HOUSING .
-- Install the air duct pipes. Refer to OVERVIEW - AIR FILTER HOUSING .
-- Install the air ducts with screw-type clamps. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
-- Install the wires, fuse panel and engine compartment E-box cover. Refer to RELAY PANELS, FUSE PANELS AND E-BOXES and Wiring Diagram.
-- Install the lock carrier cover. Refer to LOCK CARRIER .
-- Install the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Follow all steps after connecting the battery. Refer to Battery, Disconnecting and Connecting .
-- Install the tower brace. Refer to SUSPENSION STRUT AND UPPER CONTROL ARM .
-- Install the upper longitudinal member. Refer to LOCK CARRIER .
-- Install the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
There is a risk of destroying the control modules due to excessive voltage.
- Do not use a charger to jump start.
-- Fill the engine oil and check the oil level.
Vehicles through MY 2013:
-- Before starting the engine for the first time, fill the hydraulic fluid in the power steering fluid reservoir. Refer to POWER STEERING FLUID LEVEL, CHECKING .
The power steering pump must not run dry.
Continuation for All Vehicles:
-- Connect the coolant hoses with the connector coupling. Refer to Fig 2.
Used coolant cannot be used again.
-- Fill the coolant. Refer to COOLANT, DRAINING AND FILLING .
-- Fill the refrigerant circuit with Refrigerant R134a.
-- Align the subframe. Refer to Subframe with Steering Gear, Removing and Installing .
-- Install the wheel housing liners. Refer to WHEEL HOUSING LINER .
-- Perform an axle alignment. Refer to Axle Alignment Procedure .
Risk of accident due to loose threaded connections.
- Tighten the subframe bolts to the final tightening specification after performing an axle alignment.
-- Fill the ATF. Refer to [For transmission(s) 0BK] ATF Level, Checking .
-- Install the underbody trim panels. Refer to UNDERBODY PANEL .
-- Install the noise insulations. Refer to NOISE INSULATION .
-- Calibrate the electro-hydraulic engine mount after calibrating. Refer to ELECTRO-HYDRAULIC ENGINE MOUNT, CALIBRATING .
-- The "combustion misfire adaptations" must be adapted after the engine is replaced. Select 01 - Reset combustion misfire adaptation in Guided Fault Finding on the Vehicle Diagnostic Tester.
