Engine Cover, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

-- To prevent damage to the engine cover, do not hit it with a fist or a tool.

-- Pay attention to the oil filler tube when positioning the engine cover.

-- Install the engine cover according to the following directions:

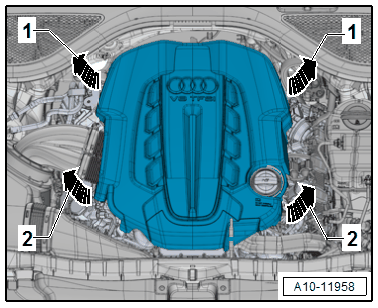

Fig 1: Identifying Engine Cover

Courtesy of AUDI OF AMERICA, LLC

First press on the engine cover using both hands at the rear mounting points -1-.
Then press on the engine cover using both hands at the front mounting points -2-.
