Service Position, Performing And Resetting: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Guide Pins:T10228

CAUTION:

On vehicles with distance regulation (ACC), note the following.

If the bumper is removed and re-installed or changes are made to ACC bracket, distance regulation adjustment must be carried out. Refer to Adaptive Cruise Control (ACC), Calibrating .

Note the following on vehicles with an Night Vision System Camera -R212-.

It is necessary to perform a calibration if the bumper was removed and then installed again or if changes were made to the radiator grille. Refer to Infrared System, Calibrating .

NOTE:

For the Service position, no lines and/or circuits are disconnected or opened, for example engine cooling system, Air Conditioning (A/C) compressor system, etc.

When installing the lock carrier, make sure that no lines or cables get pinched or kinked at the connecting points.

Tightening specifications. Refer to OVERVIEW - LOCK CARRIER .

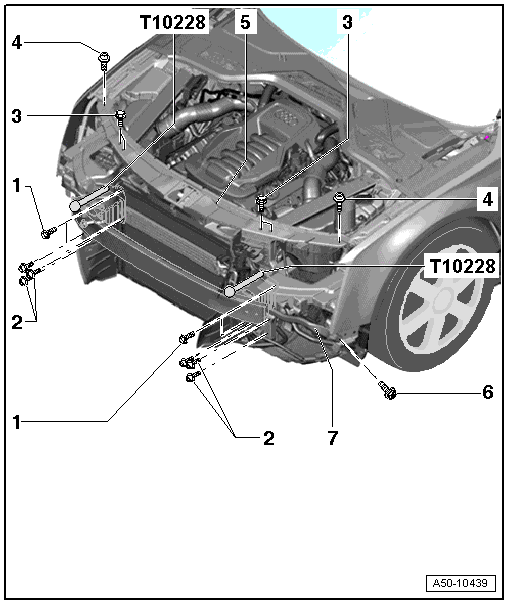

Fig 1: Identifying Lock Carrier And Bolts

Courtesy of AUDI OF AMERICA, LLC

Bolt
- :T10228 are installed in free threads at inner left and right.
Bolt
Bolt
Lock Carrier
- Service Position:
  -- Disconnect the battery. Refer to Battery, Disconnecting and Connecting .

  -- Remove the front bumper. Refer to BUMPER COVER, REMOVING AND INSTALLING .

  -- Remove the top lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

  -- Remove the seal on the hood near the lock carrier.

  -- Disconnect the engine hood cable at the coupling. Refer to Release Cable Coupling

  -- Remove the hose from the coolant reservoir. Refer to Loosen the Coolant Hose on the Reservoir

  -- Disconnect the headlamp connectors.

  -- On vehicles with charge air cooler, pressure hoses must also be disconnected.

  -- Remove upper right or left bolts -1- from the longitudinal member

  -- Install the left and right outer :T10228 into the open thread.

  -- Remove the remaining bolts -1- from the longitudinal member and from the lower longitudinal member -2-.

  -- Remove the bolts -3- from the upper longitudinal member and the -4- fender flange.

  -- Remove the bolts -6- from the fender brace.

  -- Remove lock carrier without stretching wires forward on guide pins.

  CAUTION:
  When removing lock carrier, wiring must not be pinched or kinked.
- Install in reverse order of removal.
- After installing, the headlamp setting must be checked and adjusted if necessary. Refer to Headlamp, Adjusting .
Bolt
Fender Brace

Screw in the :T10228

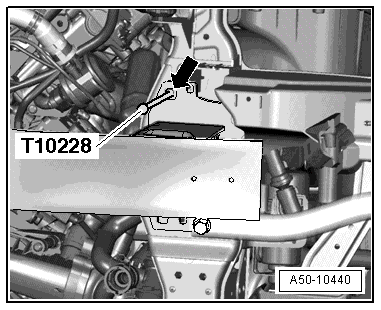

Fig 2: Identifying Screw In The Guide Pins

Courtesy of AUDI OF AMERICA, LLC

-- Install the guide rods on the upper mount into the longitudinal member as illustrated above.
