Preparations For Compressor And Pressure Line Leak Check: Notes

WARNING: This page is about a different car, the 2018 Audi A8 Quattro, 2017 Audi A8 Quattro, 2016 Audi A8 Quattro, and 2015 Audi A8 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Turbocharger Tester Kit:V.A.G 1397A
Pneumatic Repair Set:VAS6618A
Vehicle Diagnostic Tester

NOTE:

When an appropriate entry is made in the event memory, you are prompted in "Guided Fault Finding" to perform a leak check, refer to Vehicle Diagnosis Tester.

Then the preparations for this leak test are described that must be carried out directly in the rear seat.

For the connection diagram with assignment of the pneumatic lines to the air cushions, refer to CONNECTION DIAGRAM - PNEUMATIC SYSTEM .

The external check valve -1- is discontinued as of June 2010. Since then it is located inside the control modules for the multicontour seat. To find out if the control module has the check valve or not, refer to the Parts Information.

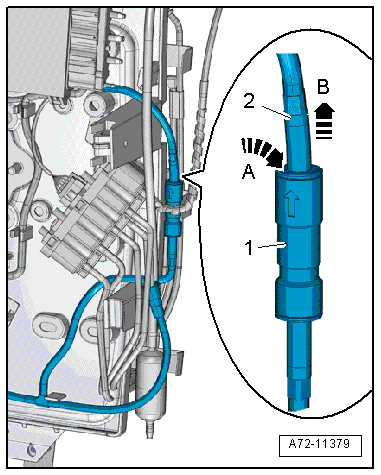

Fig 1: External Check Valve

Courtesy of AUDI OF AMERICA, LLC

Remove the separate check valve if installing a multicontour seat control module that contains an integrated check valve, refer to the Parts Information.
