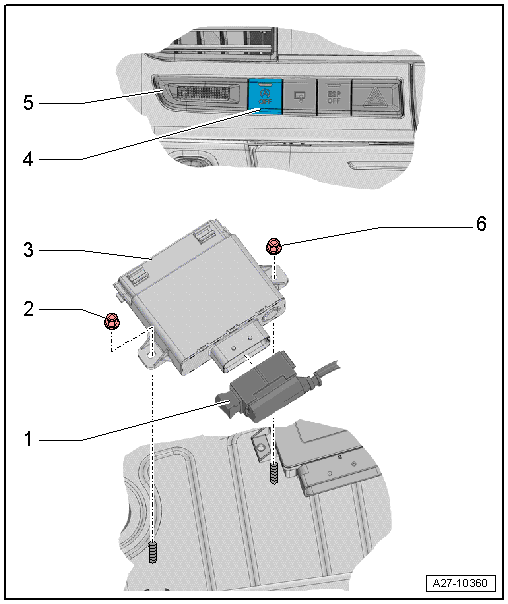

Overview - Start/Stop System Component Location
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- Nut
- 3 Nm
- Voltage Stabilizer -J532-
- Removing and installing. Refer to VOLTAGE STABILIZER, REMOVING AND INSTALLING .
- Start/Stop Mode Button -E693-
- Removing and installing. Refer to LEFT FRONT CENTER CONSOLE CONTROL HEAD E461 WITH E693, E656, E462, E229, E256 AND E149, REMOVING AND INSTALLING .
- Front/Center Console Control Head
- Nut
- 3 Nm
