Engine Number/Engine Specifications

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Engine Number

NOTE:

The engine number -arrow B- is visible, when the housing for the charge air cooler is removed.

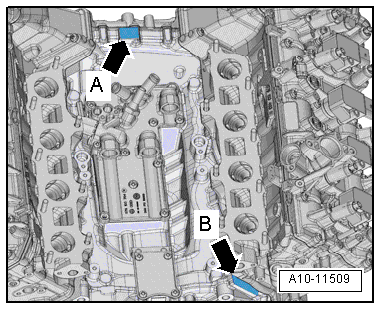

Fig 1: Locating Engine Number

Courtesy of AUDI OF AMERICA, LLC

The first 3 digits of the engine code -arrow A- are visible, when the engine cover is removed.

The engine serial number ("engine code" and "serial number") are located on the front of the cylinder block on the left side -arrow B-.
Engine codes beginning with "C" are four letters long.
The first three positions of the engine code stand for displacement and the mechanical engine structure. They are stamped in the cylinder block, including the serial number.
The fourth position represents the engine output and torque and is dependent on the engine control module.

NOTE:

The four digit engine code is on the type plate (market-specific), vehicle data label and engine control module.

Component locations of the type plate (market-specific) and vehicle data label. Refer to VEHICLE DATA LABEL .

Engine Specifications

Refer to ENGINE OVERVIEW .
