Windshield, Installing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Cross-section thickness of adhesive bead is determined by dimension of opening in nozzle tip and rate of application.

Dimensions for adhesive application:

Fig 1: Checking Adhesive Applying Dimensions

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Adhesive Bead
Glass/Paint Primer
Washer

Dimension -a- = 8 mm.
Dimension -b- = 12 mm.
Dimension -c- = note the different spacing dimensions to the window edge. Refer to OVERVIEW - WINDSHIELD .

-- Position complete surface of nozzle -2- onto window.

Fig 2: 2K Window Adhesive Kit Applying Area (1 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Application in direction of -arrow- for adhesive bead -1-.

-- Apply adhesive sealing material -1- all around on window -2- according to illustration.

Fig 3: Applying Adhesive Sealant All Around Window

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- With an undamaged removed window, apply adhesive to remaining bead.

-- Using suction cups, install the windshield.

CAUTION:

The window must be installed within 15 minutes or the adhesive sealing material will not adhere properly.

-- Center window along sides.

-- Distance from the edge of the window to the left and right holes in the roof frame, dimension -a- = 43.5 mm.

-- Support the window glass from sliding out using a wedge at the bottom.

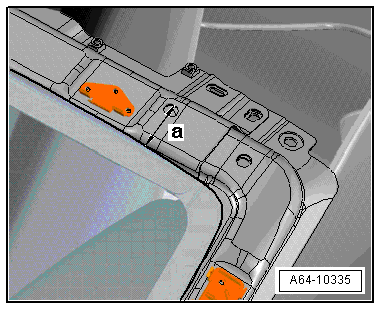

Fig 4: Identifying Distance From Edge Of Window To Left & Right Holes In Roof Frame, Dimension -A- = 43.5 Mm

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the upper trim to the roof frame.

-- Secure the window to the top of the roof with adhesive tape.

-- For a new window, protective piping -2- must be pulled out of the frame -3- for the windshield -1- before assembling the plenum chamber cover -4-.

Fig 5: Installing Plenum Chamber

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Observe minimum curing time. Refer to MINIMUM CURING TIME FOR BONDED WINDOWS .
