Overview - Windshield: Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
In vehicles with lane assist, the camera must be recalibrated. Refer to FRONT DOOR TRIM PANELS .

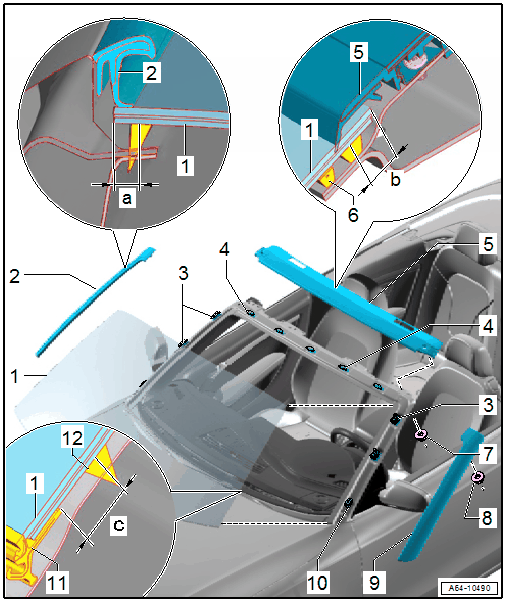

- Windshield
- Removing and Installing. Refer to WINDSHIELD, REMOVING AND INSTALLING .
- align the window glass on the left and right sides >>dimension b<< when installing
- Height adjustment. Refer to OVERVIEW - WINDSHIELD .
- Right A-Pillar Trim
- Removing and Installing. Refer to TRIM, REMOVING AND INSTALLING, A-PILLAR AND WINDSHIELD FRAME .
- Press into retaining strip only after minimum curing time for the window adhesive is done.
- A-Pillar
- Clip
- Roof frame trim
- Removing and Installing. Refer to TRIM, REMOVING AND INSTALLING, A-PILLAR AND WINDSHIELD FRAME .
- Spacer
- Nut
- 4 Nm
- Nut
- 2 Nm
- Left A-Pillar Trim
- Removing and Installing. Refer to TRIM, REMOVING AND INSTALLING, A-PILLAR AND WINDSHIELD FRAME .
- Clip
- Frame
- No replacement part
- Remove the protective piping before installing the plenum chamber cover on a new window glass Figure.
- Window Adhesive
- Note varying spacing dimensions to window edge.
- Dimension -a- = 12 mm
- Dimension -b- = 10 mm
- Dimension -d- = 12 mm
- Observe curing times. Refer to MINIMUM CURING TIME FOR BONDED WINDOWS .
- Note varying spacing dimensions to window edge.
