Overview - Rear Display And Control Head: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

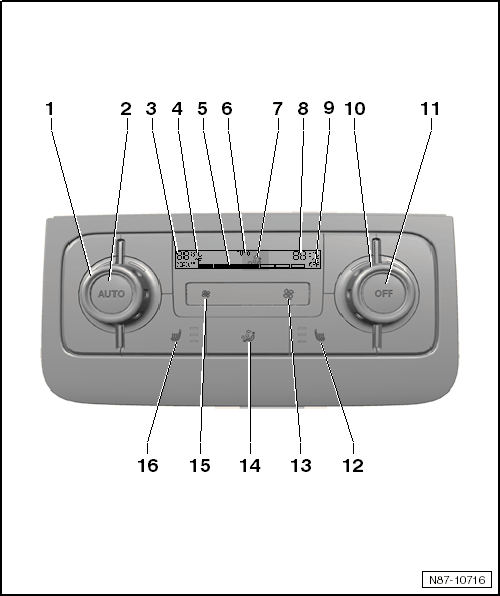

Fig 1: Identifying Rear Display And Control Head
GWWN87-10716Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Left Thermostat
    • Change left rear temperature setting by turning.
  2. AUTO  Button
    • In automatic mode the Climatronic maintains the selected rear interior temperature automatically. With this setting the vent air temperature, the blower speed and the air distribution are controlled automatically.
  3. Display for Diagnostic Function
    • The display appears when there is communication between the vehicle and Vehicle Diagnostic Tester.
  4. Selected Interior Temperature Display, Left Side
    • Can be changed from degrees Celsius to degrees Fahrenheit and vice versa
  5. Blower Speed Display
    • In automatic operation the actual blower speed is displayed.
  6. Display of the "Auto" Function
  7. Air Distribution Display
    • Displays the rear air distribution setting.
  8. Selected Interior Temperature Display, Right Side
    • Can be changed from degrees Celsius to degrees Fahrenheit and vice versa
  9. "OFF" Display
    • Illuminates when the heating and A/C function is switched off via the 11  button.
  10. Right Thermostat
    • Change right rear temperature setting by turning.
  11. "OFF" Button
    • Press the "OFF" button to turn off the heater and A/C.
  12. Right Seat Heater Button
    • The seat heater has 3 settings. The LED indicates the current setting.
    • If no LED is illuminated, the seat heater is switched off.
  13. Button for Increasing the Blower Speed
  14. Air Distribution Button
  15. Button for Lowering the Blower Speed
  16. Left Seat Heater Button
    • The seat heater has 3 settings. The LED indicates the current setting.
    • If no LED is illuminated, the seat heater is switched off.
