Overview - Front Display And Control Head: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

For the Climatronic with 2-zone temperature control and 4-zone temperature control, there is only one Front A/C Display Control Head -E87-.

The Front A/C Display Control Head -E87- must be coded for the corresponding version.

In vehicles without seat ventilation, covers are installed instead.

Note safety precautions. Refer to START/STOP SYSTEM SAFETY PRECAUTIONS .

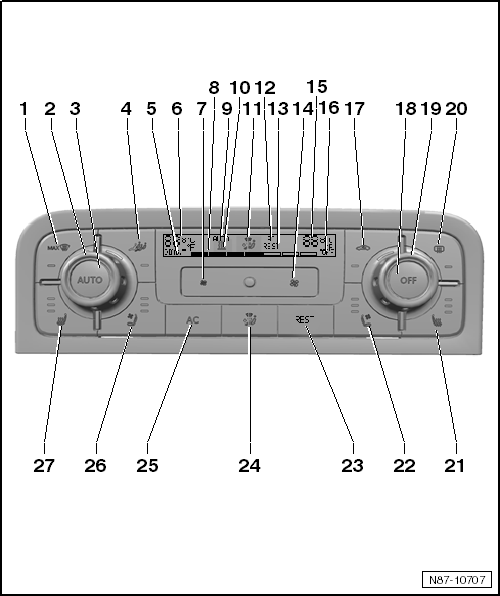

Fig 1: Identifying Front A/C Display -E87- With Climatronic Control Module -J255-
GWWN87-10707Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Defrost Button
  2. Left Thermostat
    • Change front left temperature setting by turning.
  3. AUTO  Button
    • In automatic mode the Climatronic maintains the selected interior temperature automatically. With this setting the vent air temperature, the blower speed and the air distribution are controlled automatically.
  4. Air Conditioning (A/C) Synchronization Button
    • This button transfers all driver air conditioning settings to the other seats.
  5. Display for Diagnostic Function
    • The display appears when there is communication between the vehicle and Vehicle Diagnostic Tester.
  6. Selected Interior Temperature Display, Left Side
    • Can be changed from degrees Celsius to degrees Fahrenheit and vice versa.
  7. Button for Lowering the Blower Speed
  8. Blower Speed Display
    • In automatic operation the actual blower speed is displayed.
  9. Display of the "Auto" Function
  10. Parking Heater Display
    • The display appears when the parking heater is switched on.
  11. Air Distribution Display
    • Displays the front air distribution setting.
  12. "A/C" Display
    • The A/C compressor is set to almost 0 delivery when the AC  button is off. If the AUTO  button is activated, the heating and ventilation mode continues to be controlled electronically.
  13. Display of the Residual Heat Function
  14. Button for Increasing the Blower Speed
  15. Selected Interior Temperature Display, Right Side
    • Can be changed from degrees Celsius to degrees Fahrenheit and vice versa.
  16. "OFF" Display
    • Illuminates when the heating and A/C function is switched off via the 18  button.
  17. Recirculating Air Mode Button
    • Press the button for recirculating air function to prevent polluted air from entering interior.
    • Setting indicated by the LED.
      NOTE:

      Recirculating air is switched on automatically under the following conditions:

      When the windshield washer system is operated.

      When the Air Quality Sensor -G238- is activated.

      When the reverse gear is engaged (this function is only active for two minutes after the engine is started).

      Blower speed on the Front A/C Display Control Head -E87- off.

      Front A/C Display Control Head -E87- "OFF"

  18. "OFF" Button
    • Press the "OFF" button to turn off the heater and A/C.
  19. Right Thermostat
    • Change front right temperature setting by turning.
  20. Rear Window Defogger Button
    • Rear window defroster remains on for 4 to 20 minutes, depending on exterior temperature.
  21. Right Seat Heater Button
    • The seat heater has 3 settings. The LED indicates the current setting.
    • If no LED is illuminated, the seat heater is switched off.
  22. Right Seat Ventilation Button
    • The seat ventilation has 3 settings. The LED indicates the current setting.
    • If no LED is illuminated, the seat ventilation is switched off.
  23. REST  Button
    • When residual heat function is switched on the residual heat of engine is pumped by a coolant pump to the heat exchanger.
  24. Air Distribution Button
  25. AC  Button
    • The A/C compressor is set to almost 0 delivery when the AC  button is off. If the AUTO  button is activated, the heating and ventilation mode continues to be controlled electronically.
  26. Left Seat Ventilation Button
    • The seat ventilation has 3 settings. The LED indicates the current setting.
    • If no LED is illuminated, the seat ventilation is switched off.
  27. Left Seat Heater Button
    • The seat heater has 3 settings. The LED indicates the current setting.
    • If no LED is illuminated, the seat heater is switched off.
