CLIMATRONIC Temperature Unit, Switching
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
The temperature display unit can be switched between Celsius and Fahrenheit in the setup menu of the Infotainment system.
-- Press the SETUP button in the Infotainment.
-- Touch the SYSTEM button.
-- Touch the UNITS button.
-- Select the desired unit.

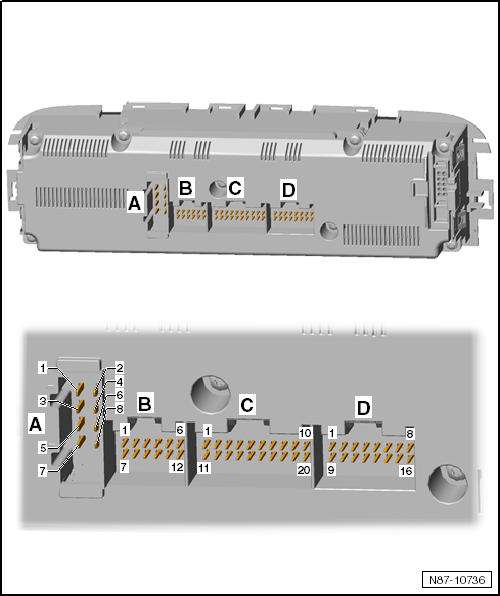

Climatronic Control Module -J255- Connectors
Terminal Assignment of Multi-Pin Connectors A, B, C and D on the rear side of Climatronic Control Module -J255-
Special Tools And Workshop Equipment Required
- Test Box Kit - Basic Test Box:VAG1598/14
- Test Box Kit - Adapter 11:VAG1598/11
