Function Of The CLIMATRONIC Via The Infotainment System

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

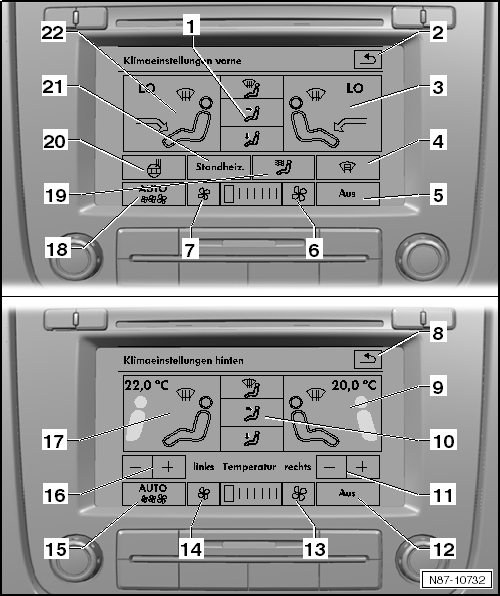

Fig 1: Identifying Climatronic VIA Infotainment System Overview
GWWN87-10732Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Buttons for Setting the Front Air Distribution
    • Air distribution to the windshield, the upper body, and the footwell.
  2. "Back" Button
    • Return to the previous menu.
  3. Display of the Front Passenger Air Distribution and Temperature Setting
  4. Windshield Defroster Button
    • Only works with the engine running and switches off automatically after several minutes.
  5. OFF  Button
    • The rear Climatronic is switched off.
  6. Button for Increasing the Front Blower Speed
  7. Button for Lowering the Front Blower Speed
  8. "Back" Button
    • Return to the previous menu.
  9. Display of the Right Rear Air Distribution and Temperature Setting
  10. Buttons for Setting the Rear Air Distribution
    • Air distribution to the windshield, the upper body, and the footwell.
  11. Right Rear Temperature Control
  12. OFF  Button
    • The rear Climatronic is switched off.
  13. Button for Increasing the Rear Blower Speed
  14. Button for Lowering the Rear Blower Speed
  15. AUTO  - Rear Button
    • Automatic control for temperature, blower, and air distribution.
  16. Left Rear Temperature Control
  17. Display of the Left Rear Air Distribution and Temperature Setting
  18. AUTO  - Front Button
    • Automatic control for temperature, blower, and air distribution.
  19. Button for Residual Heat Function
    • When residual heat function is switched on the residual heat of engine is pumped by a coolant pump to the heat exchanger.
  20. Steering Wheel Heating Button
    • The steering wheel is heated to approx. 25 °C (77 °F) and is kept almost constant.
  21. Parking Heater Button
    • Menu for setting the parking heater.
  22. Display of the Driver Air Distribution and Temperature Setting
