Rear Display And Control Head, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If a new Rear A/C Display Control Head -E265- is installed, the replace control module function and a basic setting must be performed in the Guided Fault Finding or the Guided Functions.
-- Remove the rear vent. Refer to REAR VENT, REMOVING AND INSTALLING .

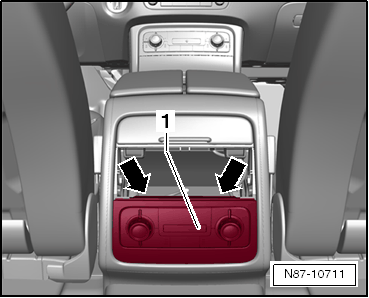

-- Pull the Rear A/C Display Control Head -E265- -1- on the indicated points -arrows- to the right or left with one hand and remove it from the center console.
-- Disconnect the connector from the Rear A/C Display Control Head -E265- -1-.
