Front Display And Control Head, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If a new Front A/C Display Control Head -E87- with a Climatronic Control Module -J255- is installed, the Replace control module function and a basic setting must be performed in the Guided Fault Finding or the Guided Functions.

Prior to working on electrical wires, disconnect the corresponding fuse/fuses. Refer to Wiring Diagram.

-- Open the ashtray cover.

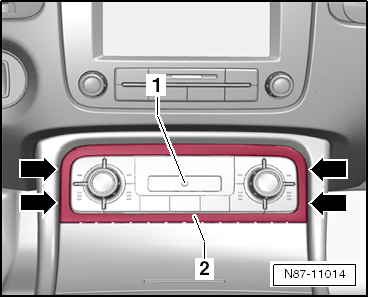

-- Unclip and remove the trim -2- at the indicated locations -arrows- from the Front A/C Display Control Head -E87- -1- using the :3409 .

Fig 1: Display And Control Head

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

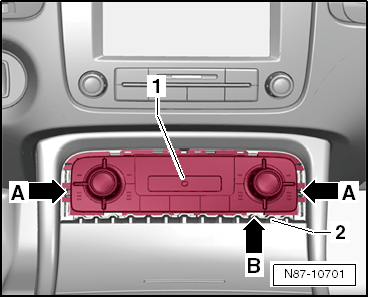

-- Carefully insert the :3438 in the area -arrow B- underneath and then behind the Front A/C Display Control Head -E87- -1-. Press frame -2- slightly downward in this process.

Fig 2: Identifying Area -Arrow B-, Front A/C Display Control Head -1- And Frame -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

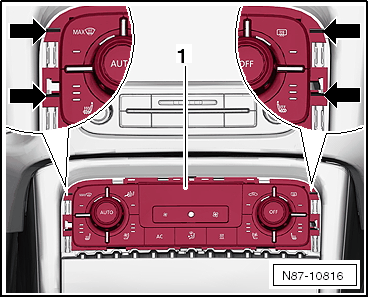

-- Insert both :T10315 horizontally into the slits -arrows- first on one side (be sure to protect the center console) and push them gently toward the outside to release the tabs.

Fig 3: Identifying Slots On Side -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Use both tools to remove the Front A/C Display Control Head -E87- -1- toward the front.

-- Use the :3409 to press the retaining tabs inward as needed.

-- Disconnect the connectors and remove the Front A/C Display Control Head -E87- with the Climatronic Control Module -J255-.
